Visualize 3gpp yang model with pyang+iplantuml on python jupyter notebook



1. Fetch the latest yang model from 3gpp (Management and Orchestration APIs repository)

SA5 – Management & Orchestration and Charging / Management and Orchestration APIs · GitLab (3gpp.org)

Model file is located at: e.g., https://forge.3gpp.org/rep/sa5/MnS/-/tree/Rel-18/yang-models



2. install prerequisites

$ pip install pyang iplantuml

download plantuml ( https://github.com/plantuml/plantuml/releases/download/v1.2024.5/plantuml-1.2024.5.jar )



3. Open a jupyter notebook and transform yang model to plantuml (e.g., RRMPolicy from 3gpp TS 28.541)

%env YANG_MODPATH C:/temp/MnS-Rel-18-yang-models/yang-models
!pyang -f uml "C:\temp\MnS-Rel-18-yang-models\yang-models\_3gpp-nr-nrm-rrmpolicy.yang" > "c:/temp/test.puml"

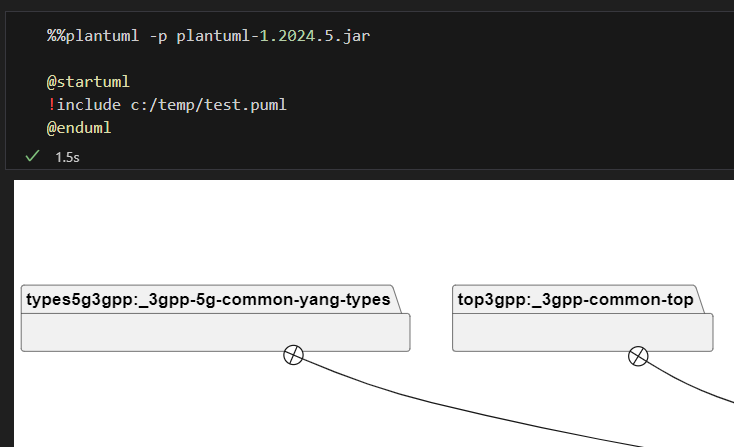

4. Run jupyter magic command

%%plantuml -p plantuml-1.2024.5.jar

@startuml
!include c:/temp/test.puml
@enduml
